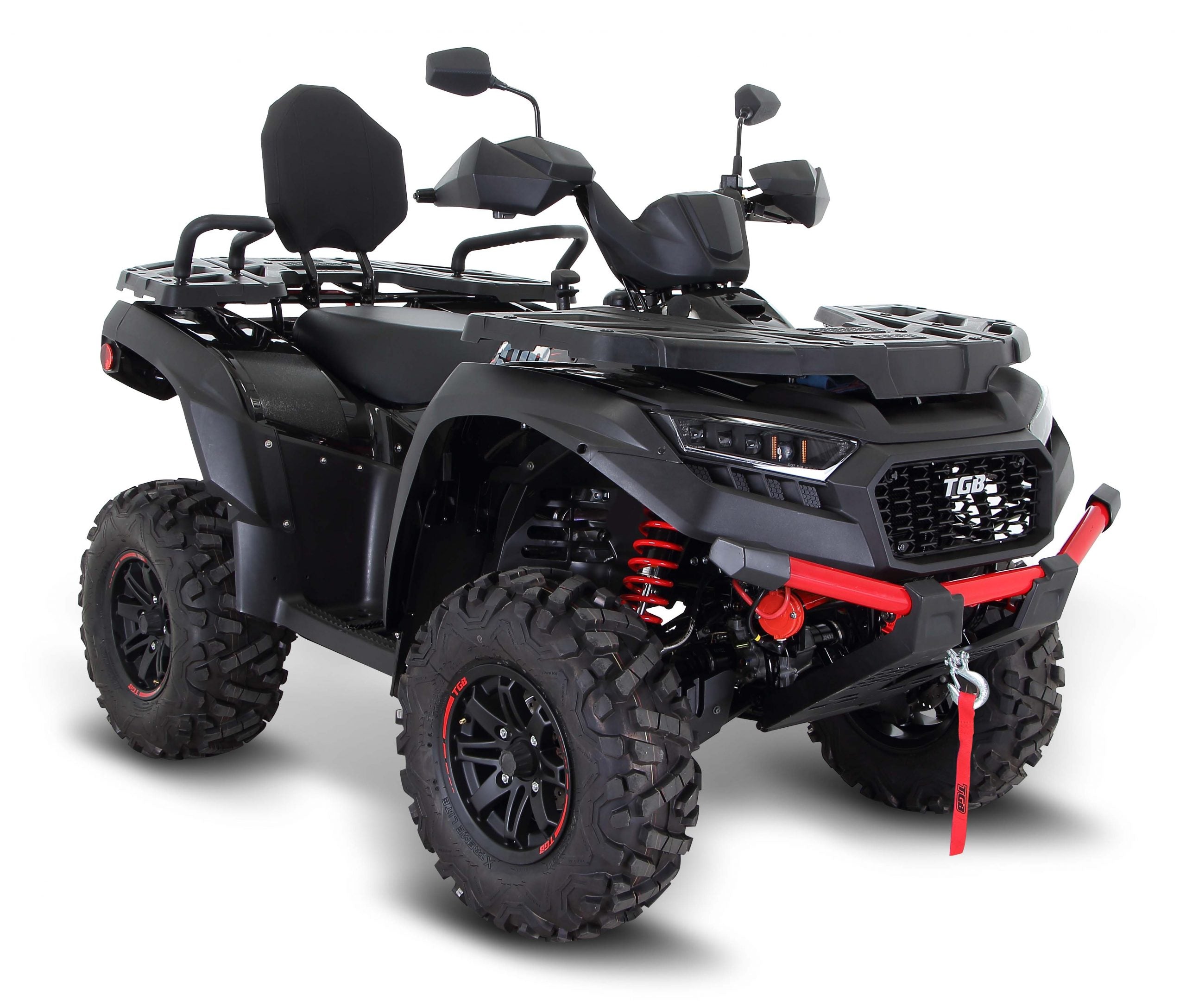

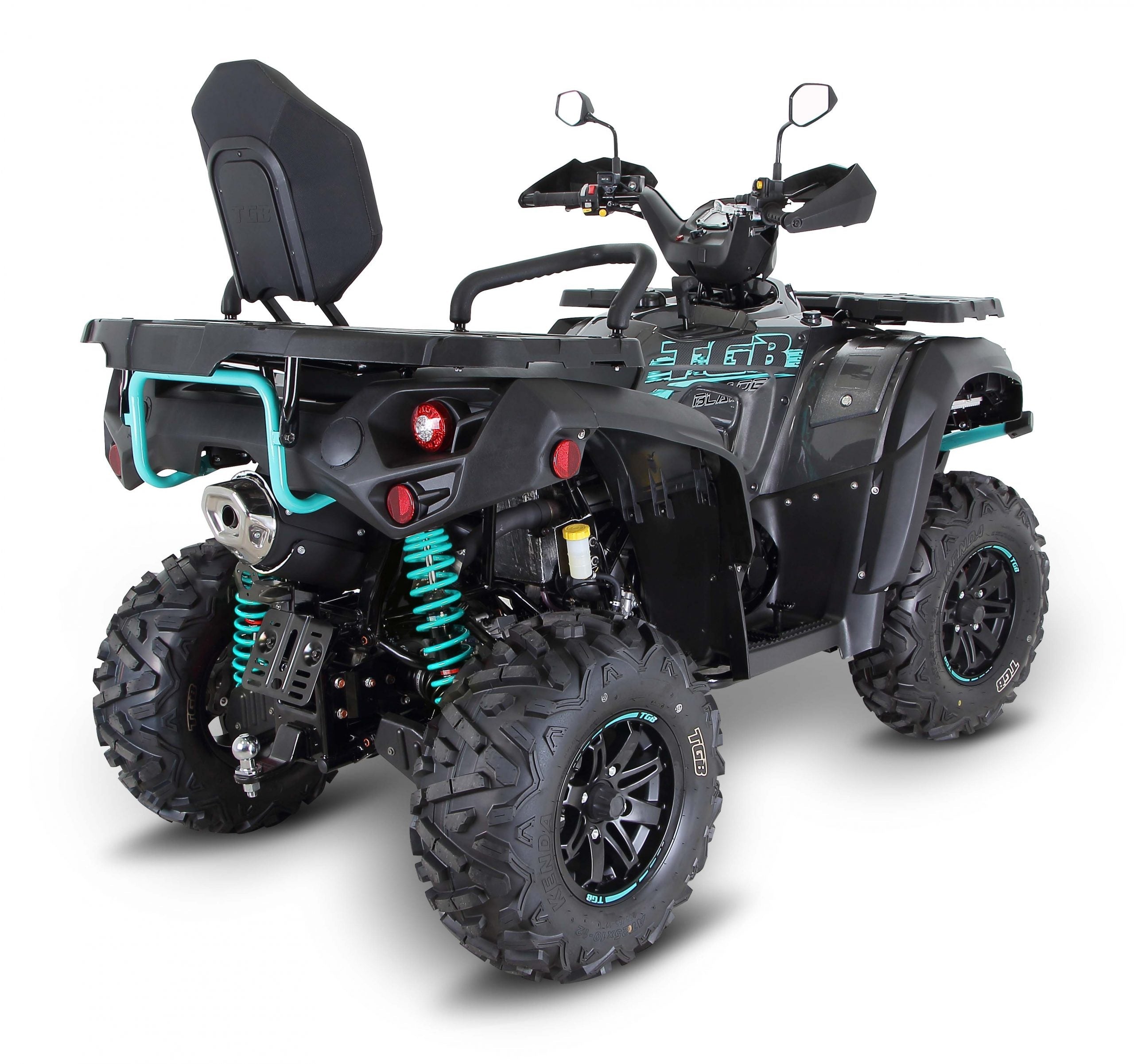

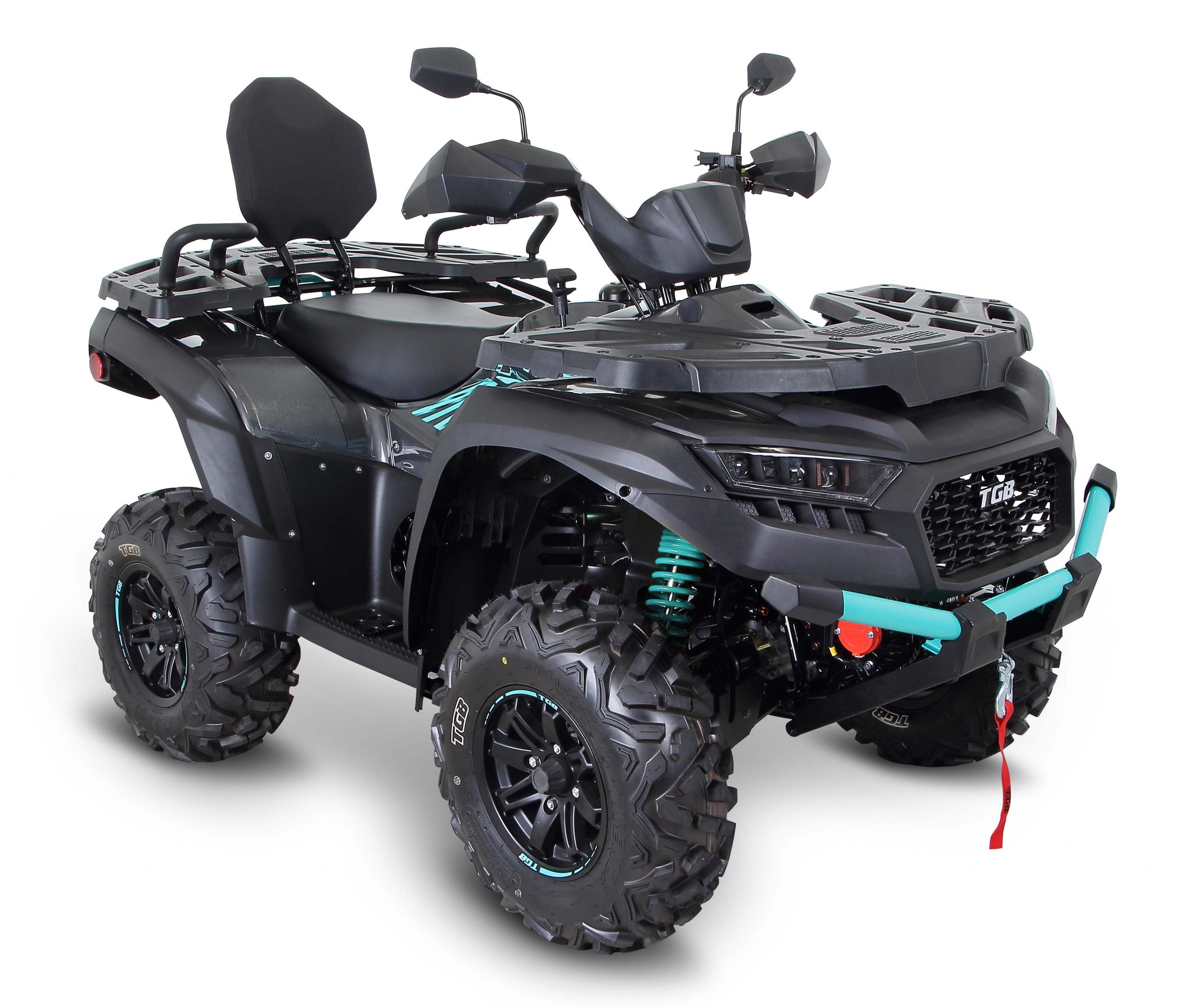

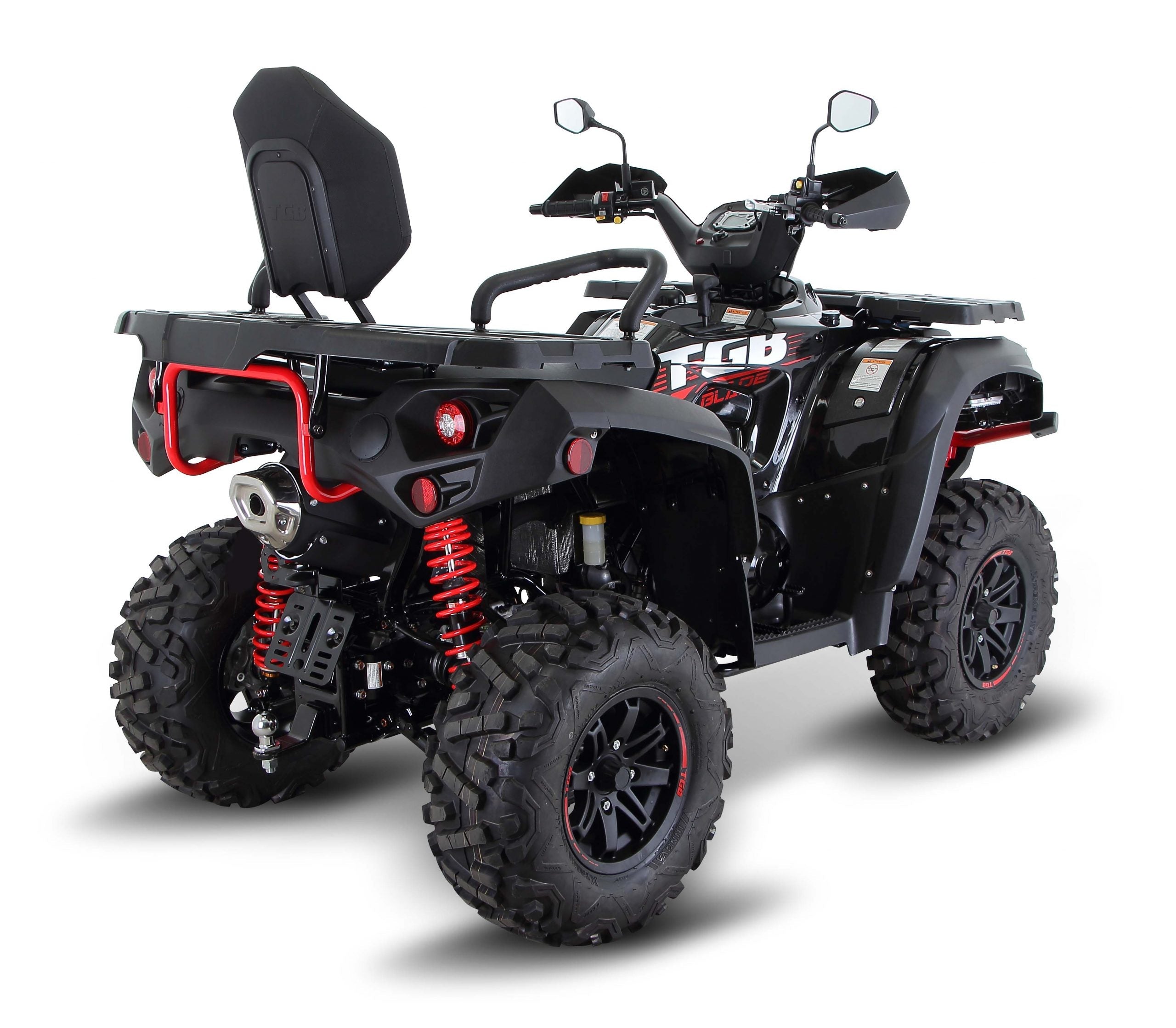

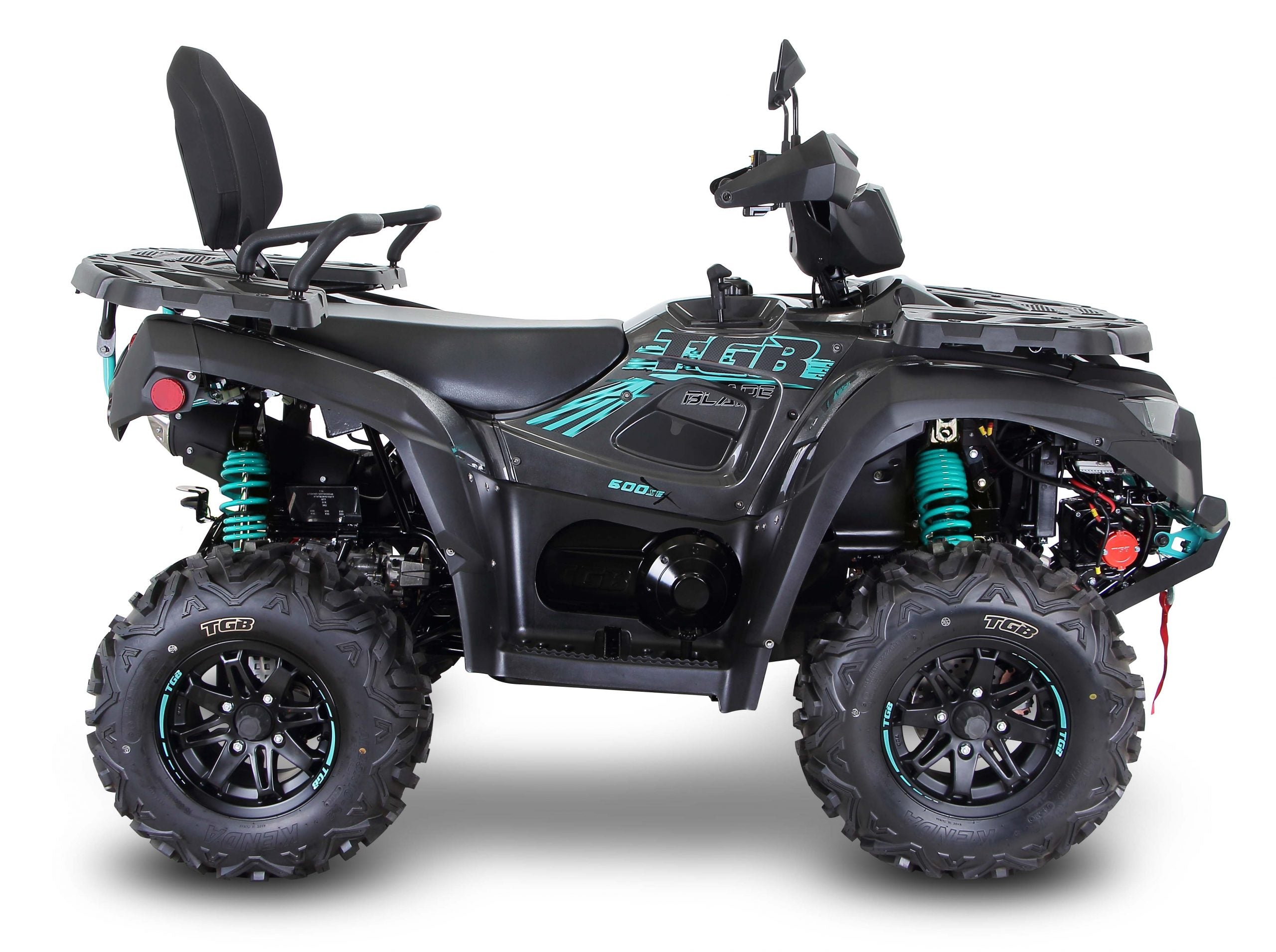

BLADE 600 LE.X EPS ATV 561cc
VALIANT AND LEGENDARY
BLADE 600 SE.X-EPS ATV is now all the rage since it released to the market.
The unique and confident design with modern LED-matrix headlights and Full-LED lighting, improved automatic transmission,
extended chassis, powerful engine, pleasant handling and excellent driving characteristics. Front radiator grille is removable for easy cleaning.
The whole new BLADE 600 SE.X-EPS ATV will definitely drive all attentions on you!
Technical Specification
TGB BLADE 600 SE.X EPS - watch on youtube
Engine Type 561 cc,Single Cylinder, SOHC
Ignition ECU
Starter Electric
Bore X Stroke Ø 95 × 79.2 mm
Compression Ratio 10.2
Fuel System 42 mm Throttle Body / Programmed Fuel Injection
Max Power 44.8 HP / 6500 rpm
Max Torque 46.5 Nm / 5500 rpm
Drive System 4 × 4 Shaft Drive
Gear Selection L / H / N / R / P
Transmission V-Belt CVT Automatic
Engine Braking System Standard
Over Ride Button Standard
Front Suspension Dual A-arm
Rear Suspension Dual A-arm with Anti-roll Bar
Front/Rear Brake Hydraulic Disc with piston caliper and Hydraulic Foot Brake
Parking Brake Park In Transmission / Lockable Hand Lever
Front Tire AT 25 × 8 – 12 , 6 PLY
Rear Tire AT 25 × 10 – 12 , 6 PLY
Wheelbase (mm) 1290
Length/Width/Height (mm) 2155 X 1240 X 1280
Fuel Capacity 18 L
Electrical Outlet Connector 2 DC 12V 10A 120W
Instrumentation Digital instrument panel with odometer, speedmeter, Tripmeter, RPM, transmission position,
fuel gauge, Hi-Temp/Low-Battery lights, high beam light, EFI checking, differential indicator, 2WD/4WD indicator, EPS indicator
Color Mountain Grey Candy Black
$250 Extra for Camo Colors (If Available)
Brand New 70% assembled inside a metal crate. Certified Technician required for Assembly,Prepp, Basic maintenance and all tech issues.Warranty covers 30 days for replacement parts only. Labor, mechanic and Returns NOT Covered.
