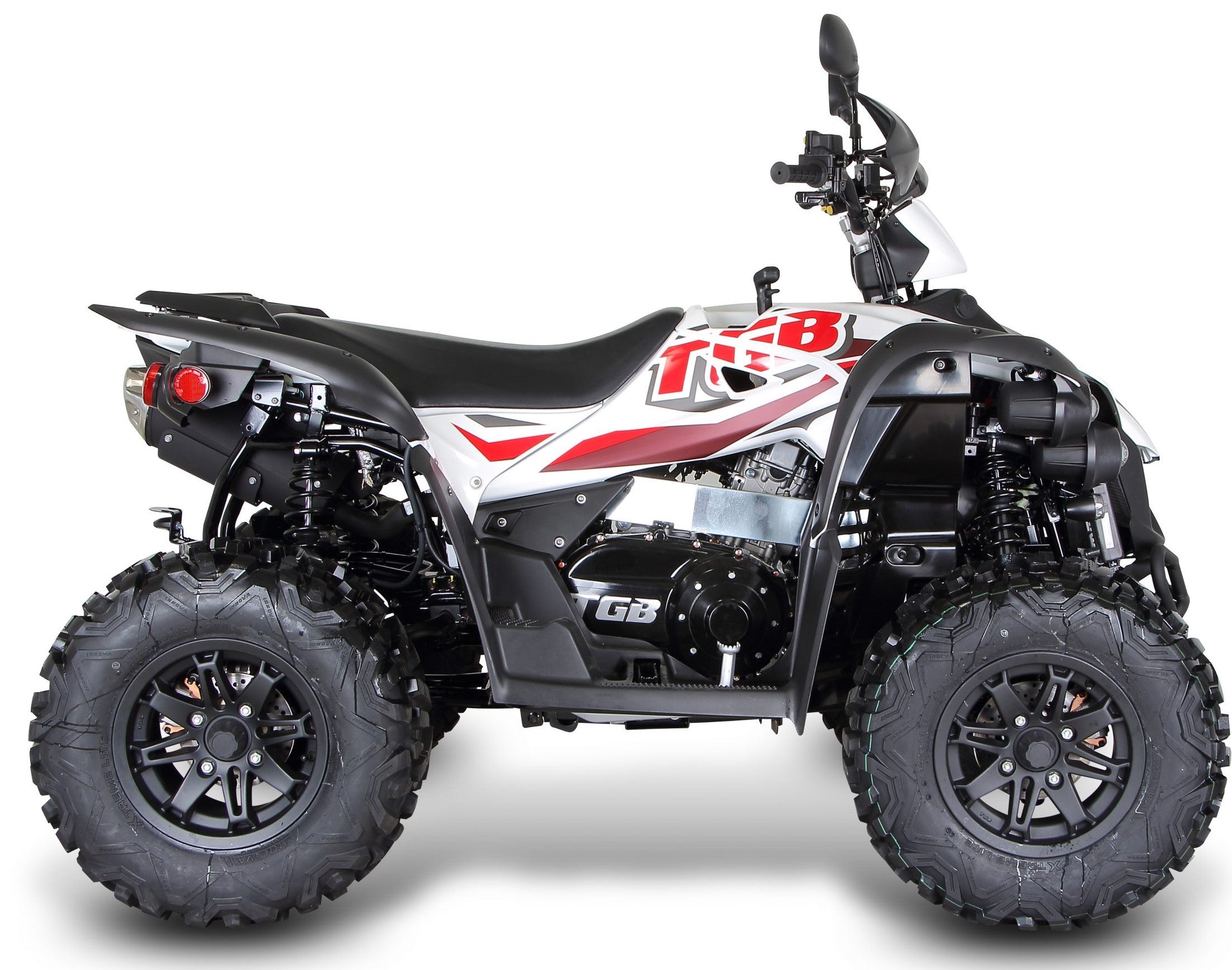

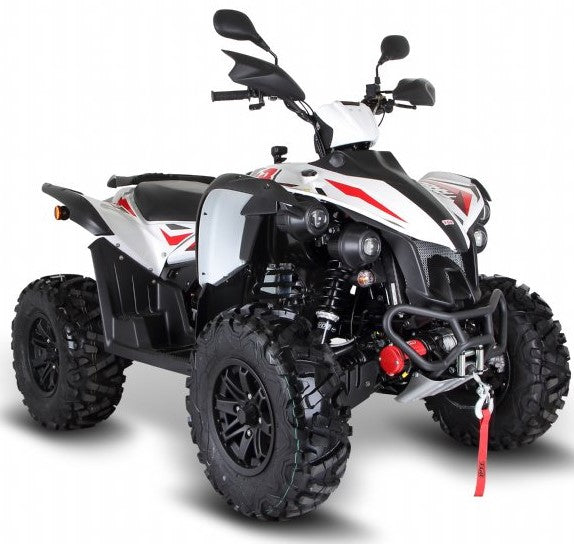

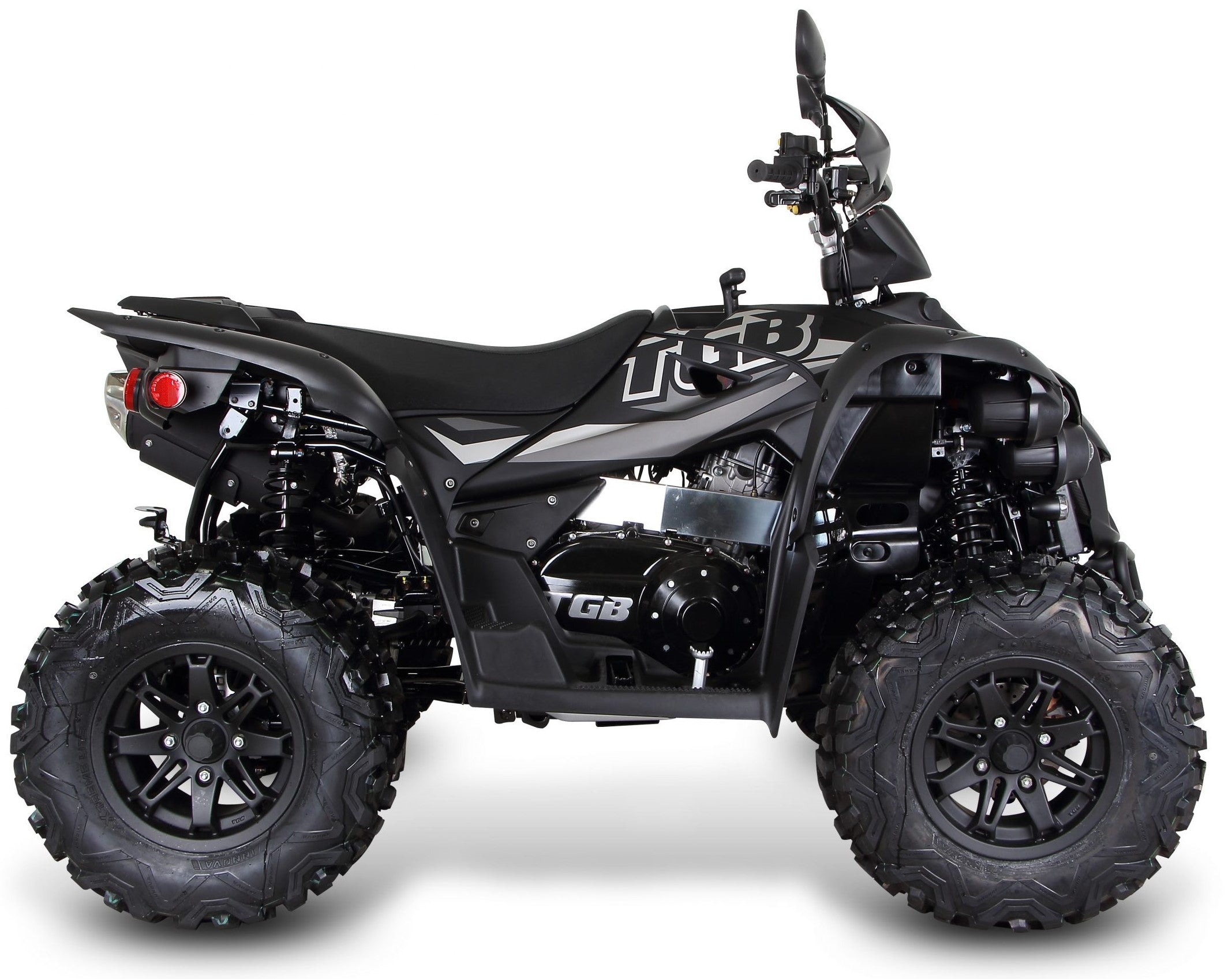

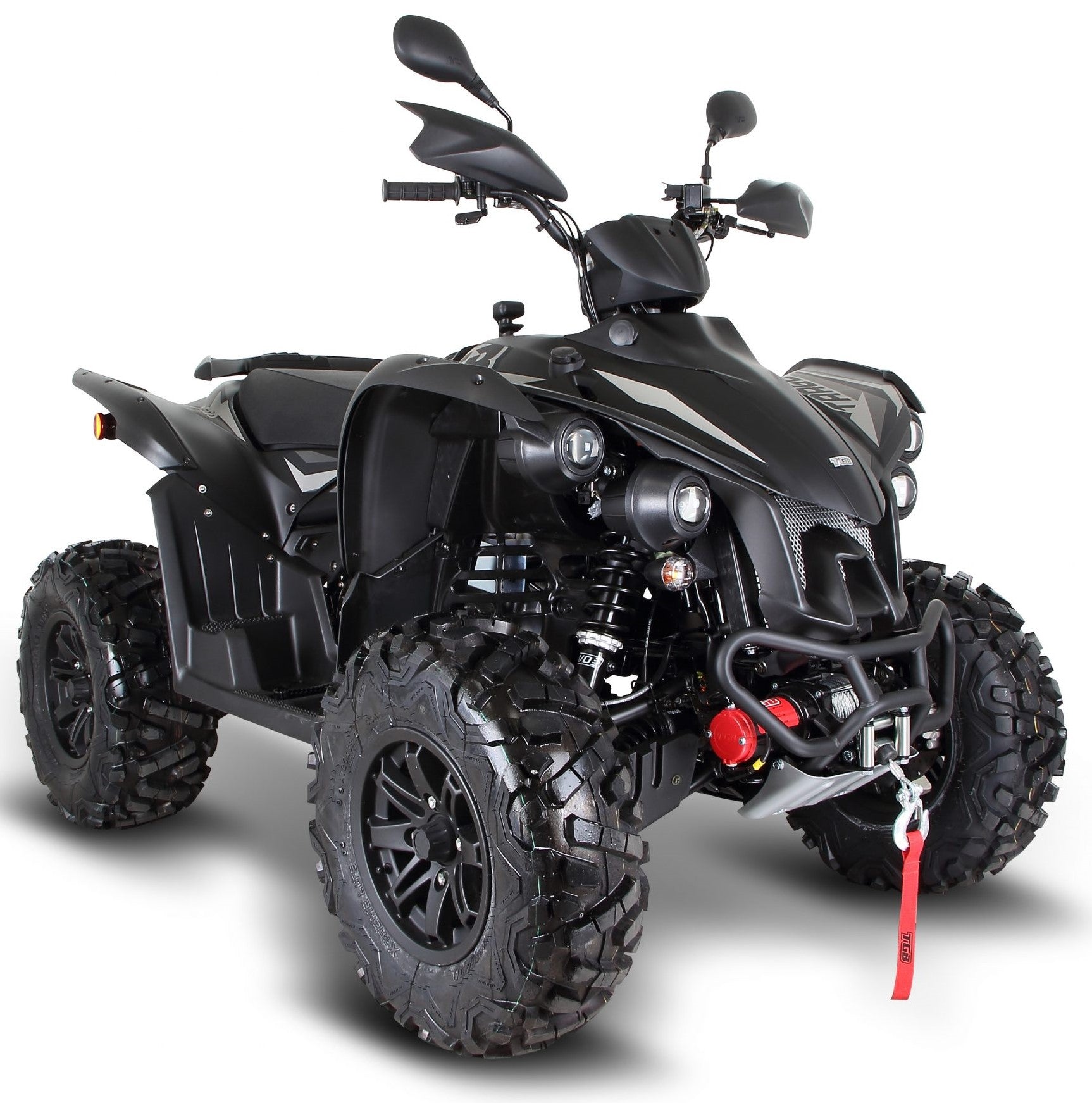

TARGET 600 561cc ATV
A DEFEFERENT BEAUTY BEAST - INDUSTRY'S MOST STYLISH SPORT ATV
TGB Target 600 with simple operation, high reliability, and an attractive price in combination with leisure ability and craftsmanship,
it will be the best choice for your sporty ATV. The 4x4 drive with differential lock can be explored anytime, anywhere,
and can bring you to any terrain. The specially tuned chassis and powerful engine deliver new levels of stability, performance,
and complete terrain dominance. Come and bring a Pearl White with the aesthetic designed TARGET home!
Technical Specification
TGB TARGET 600 - watch on youtube
Engine Type 561 cc, Single Cylinder, SOHC
Ignition ECU
Starter Electric
Bore X Stroke Ø 95 × 79.2 mm
Compression Ratio 10.2
Fuel System 42 mm Throttle Body / Programmed Fuel Injection
Max Power 44.8 HP / 6500 rpm
Max Torque 46.5 Nm / 5500 rpm
Drive System 4 × 4 Shaft Drive
Gear Selection L/H/N/R/P
Transmission V-belt CVT Automatic
Engine Braking System Standard
Over Ride Button Standard
Front Suspension Dual A-arm
Rear Suspension Dual A-arm with Anti-roll Bar
Front/Rear Brake Hydraulic Disc with piston caliper and Hydraulic Foot Brake
Parking Brake Park In Transmission / Lockable Hand Lever
Front Tire AT 25 × 8 - 12, 6 PLY
Rear Tire AT 25 × 10 - 12, 6 PLY
Wheelbase (mm) 1290
Length/Width/Height (mm) 1950 × 1240 × 1280
Fuel Capacity 18L
Electrical Outlet Connector 2 DC 12V 10A 120W
Instrumentation Digital instrument panel with odometer, speedometers, Tripmeter, RPM, transmission position, fuel gauge,
Hi-Temp/Low-Battery lights, high beam light, EFI checking, differential indicator, 2WD/4WD indicator
$250 Extra for Camo Colors (If Available)
Brand New 70% assembled inside a metal crate. Certified Technician required for Assembly,Prepp, Basic maintenance and all tech issues.Warranty covers 30 days for replacement parts only. Labor, mechanic and Returns NOT Covered.
